1586019-4
Manufacturer:
TE Connectivity
Mfr.Part #:
1586019-4
Datasheet:
Description:

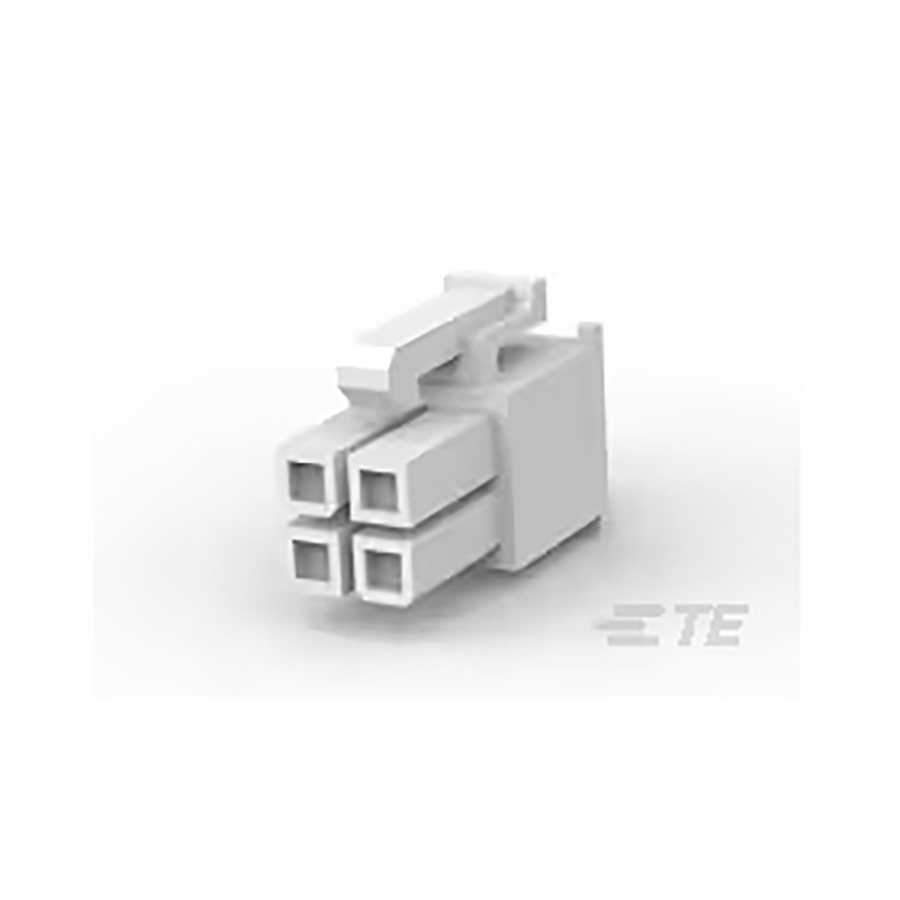

Headers and Wire Housings Cable, Free Hanging Receptacle Number of Positions:4 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Length | 9.6 mm |
| Width | 20 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 11.7856 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 20 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Pitch | 4.2 mm |
| Current Rating | 9 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Number of Circuits | 4 |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Female Sockets |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Receptacle |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 4.2 mm |
| Housing Material | Nylon |
| Wire/Cable Type | Discrete |
| Fastening Type | Latch |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | White, Natural |
| Insulation Diameter | 3.0988 mm |
| VDE Tested | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 1406
Distributors
pcbx
pcbxUnit Price$0.10003
Ext.Price$0.10003
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.10003 | $0.10003 |
| 10 | $0.08387 | $0.83870 |
| 50 | $0.07733 | $3.86650 |
| 100 | $0.07130 | $7.13000 |
| 500 | $0.07055 | $35.27500 |
| 1000 | $0.06981 | $69.81000 |
| 3000 | $0.06908 | $207.24000 |
| 5000 | $0.06835 | $341.75000 |
| 10000 | $0.06763 | $676.30000 |
